250V 2 Pin M26 Waterproof Circular Connector

Name: 250V 2 Pin M26 Waterproof Circular Connector
Brand: HYFD
Price: 1 USD

Wholesale 250V 2 Pin M26 Waterproof Circular Connector from china suppliers

Brand Name : HYFD

Model Number : SQ26

Certification : CE,RoHS,IP68,CQC

Place of Origin : Mainland China

MOQ : 200/500

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20K sets per month

Delivery Time : 5~12 working days depending on exact order quantities

Packaging Details : Neutral Carton Packaging

Material : Nylon PA66

Finish : Gold

Pin Numbers : 2 pin

Voltage rating : 250V

Color : Black

Contact material : Brass

Wire OD : 6.0-12.5MM

Warranty : 3 Years

Contact Now

Standard M26 Waterproof Circular Connector IP68 2 Pin Waterproof Power Cable Connector

Introduction:

1) 2~ 8 pins for power supply, 9~24 pin for signal optional.
2) Rated current: 5A/12A/15A/25A/15+5A rms.
3) IP68 waterproof connectors.

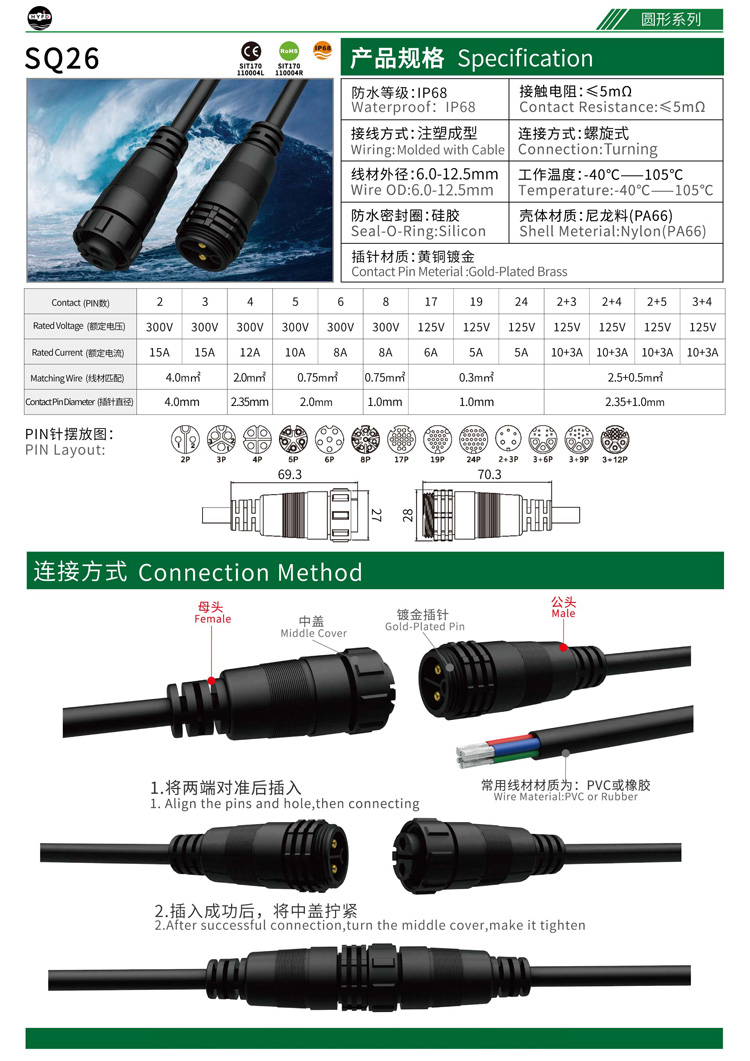

Parameter:

Item name	Cable molding waterproof connectors	Connecting code	Soldering assembly
Current rating	5A-25A	Operating temperature	-40℃--105℃
Operating voltage	250V	Wire OD	6.0~12.5mm
Mechanical life	1500 mating cycles	Contact pin material	Gold plated brass
Contact resistance	≤5mΩ	Shell material	Nylon(PA66)
Contacts numbers	2p, 3p, 4p, 5p, 6p, 8p, 17p, 19p, 2+3p, 3+6p, 3+9p, 3+12p	Waterproof level	IP68
Cable specification	0.3mm²~4.0mm²	Seal-O-Ring	Silicon

Packing:

1) Carton.

2) Plastic bag.

3) Customized packing as per requirement.

Service

We are a professional manufacturer who owns a factory. We can provide you with:

● Cable and hardware production

● Independent research and development

● Injection molding and mould making

● Perfect assembly workshop

With us, you can get the best goods in shortest time.
